8-Channel IEPE Acceleration Data Acquisition System八通道 IEPE 加速度采集系统
A focused acquisition instrument for structural vibration, impact and modal testing. It removes general-purpose overhead while keeping the synchronized sampling, bandwidth, recording integrity and engineering workflow that serious acceleration measurement requires.面向结构振动、冲击与模态测试的专用采集设备。去掉与加速度测量无关的通用配置，同时完整保留同步采样、带宽、记录完整性和工程分析能力。
Focused on IEPE, Optimized for Cost, Uncompromised in Performance专注 IEPE，降低成本，不降低性能
Every input is designed around IEPE/ICP accelerometers. Eight channels are sampled at the same instant, so phase relationships, mode shapes and cross-channel response remain meaningful. The result is a compact instrument for projects that need dependable vibration data without paying for unused bridge, thermocouple or general-purpose conditioning.每个输入通道都围绕 IEPE/ICP 加速度传感器设计。八个通道在同一时刻采样，能够保留相位关系、振型和跨通道响应。对于只需要可靠振动数据的项目，无需为桥路、热电偶或其他未使用的调理功能增加成本。
- ✓Eight-channel phase-consistent acquisition八通道相位一致采集
One synchronized sample contains all eight channels, supporting structural response comparison and modal work.一个同步采样点包含全部八通道，适用于结构响应对比与模态分析。
- ✓Dedicated low-noise IEPE front end专用低噪声 IEPE 前端
Typical 4 mA constant-current excitation and fixed AC coupling are built around acceleration measurement.典型 4 mA 恒流激励与固定交流耦合均围绕加速度测量优化。
- ✓No silent sample loss不静默丢样
Frame gaps, buffer pressure and transfer faults are reported explicitly so incomplete records are not mistaken for valid tests.帧缺口、缓冲压力和传输异常均明确报告，避免把不完整文件误判为有效试验。
From Accelerometer to Traceable Engineering Data从加速度传感器到可追溯工程数据
Input, conditioning, synchronous conversion, recording and engineering-unit conversion are managed as one acquisition path.输入、调理、同步转换、记录与工程单位换算按照一条完整采集链管理。
IEPE / ICP InputIEPE / ICP 输入
- CH1-CH8 BNCCH1-CH8 BNC
- Sensitivity in mV/gmV/g 灵敏度
Analog Front End模拟前端
- 4 mA excitation4 mA 恒流激励
- 0.8 Hz nominal high-pass名义 0.8 Hz 高通
Synchronous ADC同步 ADC
- 24-bit signed samples24 bit 有符号采样
- Up to 102.4 kS/s最高 102.4 kS/s
USB or TFUSB 或 TF
- Live host recording主机实时记录
- Local long-duration files本地长时记录
Acceleration Results加速度结果
- Waveform / FFT / PSD波形 / FFT / PSD
- g or m/s² outputg 或 m/s² 输出
Observe Live, Record to Host, or Capture Locally实时观察、主机记录或本地高速采集
The data target is selected to match the test duration, sample rate and required integrity margin.根据试验时长、采样率与完整性要求选择合适的数据目标。
Real-Time Observation实时示波
Eight waveforms, spectra, trigger state, Vrms/Vpp, clipping margin and channel quality are visible during setup and short tests.布点与短时试验中实时查看八通道波形、频谱、触发状态、Vrms/Vpp、削顶裕量和通道质量。
Host-Side Complete RecordUSB 主机完整记录
Control and diagnostics use USB CDC while lossless measurement frames are written to the host and displayed in parallel.USB CDC 负责控制与诊断，无损测量帧写入上位机文件并同步显示。
High-Speed Local RecordTF 本地高速记录
A dedicated four-line SDMMC path records directly to TF for long-duration or high-rate tasks with strict continuity requirements.四线 SDMMC 独占路径直写 TF 卡，适合高速、长时或对连续性要求严格的任务。
Acquisition and Interface Specifications采集与接口参数
Values below describe the current eight-channel IEPE acceleration configuration.以下参数对应当前八通道 IEPE 加速度配置。
| Item参数项 | Specification规格 | Engineering note工程说明 |
|---|---|---|
| Measurement input测量输入 | IEPE / ICP acceleration only | Eight BNC inputs八路 BNC 输入 |
| Channels通道数 | 8 synchronized channels | One common sample instant同一采样时刻 |
| IEPE excitationIEPE 供电 | 4 mA/channel typical | Delivery calibration target交付校准目标值 |
| Coupling耦合方式 | AC coupled; nominal -3 dB at 0.8 Hz | Blocks sensor bias voltage隔离传感器偏置 |
| Sample word采样码宽 | 24-bit signed | 8 channels × 3 bytes = 24 bytes/sample |
| Input ranges输入量程 | ±2.5 / ±5 / ±6.25 / ±10 / ±12.5 V | Common setting for all channels全通道统一设置 |
| Sample rates采样率 | 100 Hz-100 kS/s; DSA 1.28-102.4 kS/s | Per channel, synchronized每通道同步输出 |
| Oversampling过采样 | Off / 2× / 4× | Selectable before acquisition采集前设置 |
| USB controlUSB 控制 | CDC, 1,000,000 bps | Configuration and diagnostics配置与诊断 |
| Real-time data实时数据 | USB Full-Speed Vendor bulk | Protected lossless frames带保护的无损数据帧 |
| Local storage本地存储 | Four-line SDMMC TF card | Segmented files and manifest verification分卷文件与清单校验 |
| Offline export离线导出 | CSV / XLSX / MAT | Source and export SHA-256 traceability源文件与导出文件 SHA-256 追溯 |
Where Synchronized Acceleration Changes the Decision同步加速度数据在哪些场景改变判断
Dynamic monitoring captures load-driven response that slow trend sensors cannot resolve on their own.动态监测捕捉荷载驱动的结构响应，这是慢变化趋势传感器无法单独解析的部分。
Bridge Response桥梁动力响应
Traffic, wind and impact response; frequency, damping and cross-section motion comparison.交通、风与冲击响应，分析频率、阻尼和不同断面的协同运动。
Dam and Powerhouse大坝与厂房
Operational vibration, hydraulic-unit excitation and event response at critical structural locations.监测关键结构部位的运行振动、水轮机组激励与事件响应。
Impact and Modal Testing冲击与模态试验
Synchronized channels preserve phase for hammer tests, response mapping and modal identification.同步通道保留相位关系，用于力锤试验、响应测绘和模态识别。

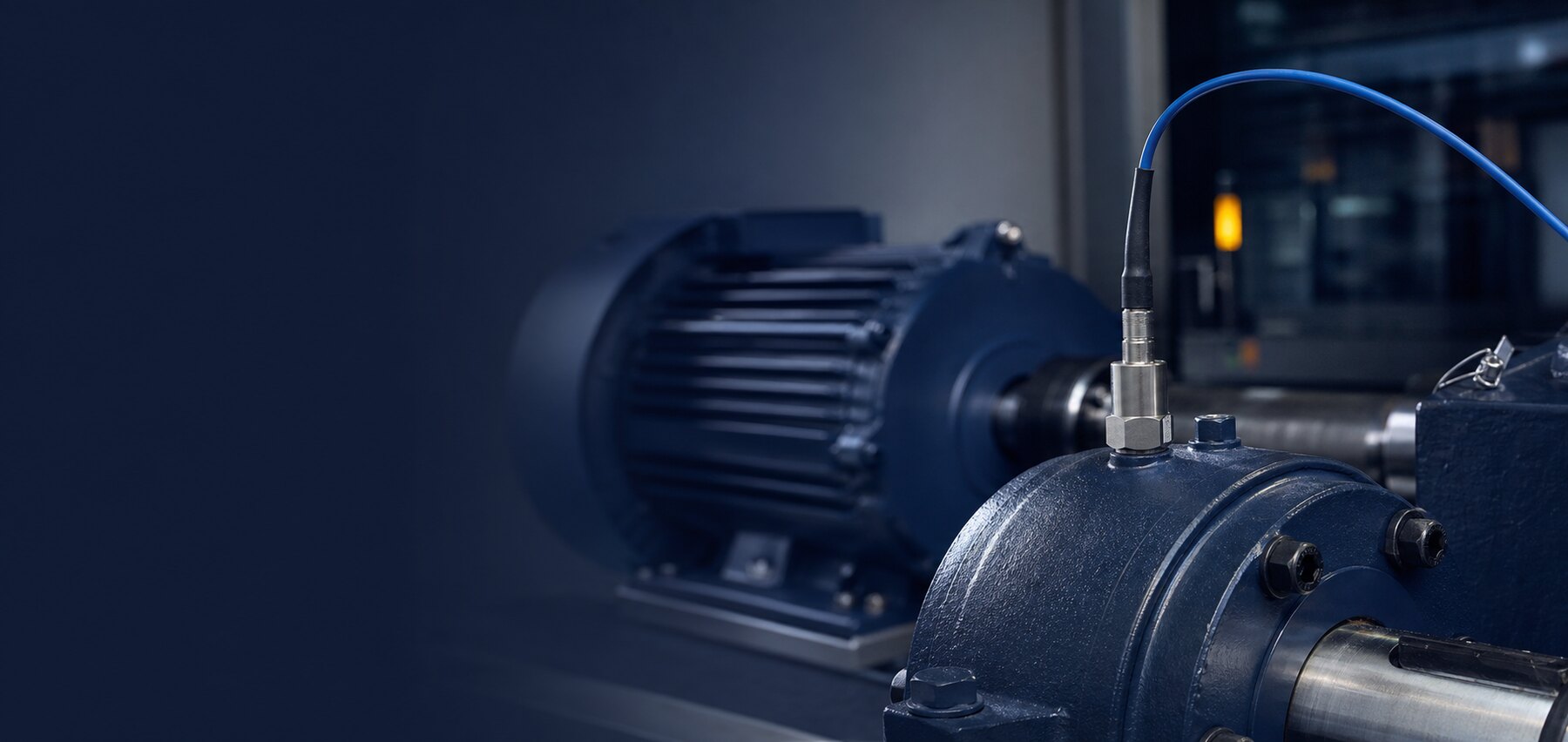

Rotating Equipment旋转设备
Motors, pumps, fans, bearings and gearboxes under laboratory or field operating conditions.覆盖电机、泵、风机、轴承和齿轮箱的实验室与现场运行测试。
Choose It When the Measurement Is Acceleration测量对象明确为加速度时，优先选择
This product is intentionally limited to IEPE/ICP accelerometers. It is not a universal voltage input and must not be connected directly to bridge sensors, thermocouples, charge-mode accelerometers or active voltage sources while IEPE excitation is enabled.本产品有意限定为 IEPE/ICP 加速度传感器专用输入。它不是通用电压采集器，在 IEPE 激励开启时，不得直接连接桥式传感器、热电偶、电荷型加速度计或有源电压源。
Need IEPE + Dynamic Strain + Full-Bridge Pressure?同时需要 IEPE、动态应变和全桥压力？
Select PRO-AQ Max for mixed sensor programs, adjustable bridge excitation, DC/AC bridge measurement, TEDS and high-end multi-physics acquisition.PRO-AQ Max 支持混合传感器方案、可调桥路激励、DC/AC 桥路测量、TEDS 与高端多物理量同步采集。
View PRO-AQ Max查看 PRO-AQ Max →Planning a vibration acquisition layout?正在规划振动采集测点？
Send the structure type, channel count, expected frequency range, sensor sensitivity, test duration and recording mode. Rasber engineers will recommend the sampling and storage configuration.提供结构类型、通道数、预期频段、传感器灵敏度、试验时长与记录方式，瑞茨柏工程师将给出采样和存储配置建议。
