Wireless Tilt, Temperature & Vibration Sensor无线温振倾角一体设备
A fully sealed, battery-powered edge sensor that measures three-axis tilt, acceleration, vibration frequency, vibration amplitude and temperature, then uploads event-aware data over NB-IoT or 4G — built for structures where a simple tiltmeter is not enough. 一体化密封、电池供电的边缘传感设备，同时采集三轴倾角、加速度、振动频率、振动幅值与温度，并通过 NB-IoT 或 4G 上报事件数据——适用于“只看倾角还不够”的结构安全监测场景。
Tilt trend, vibration event and temperature context in one timestamp 倾角趋势、振动事件与温度背景，同步成一条数据
RWIN030 combines a three-axis MEMS accelerometer, magnetometer, cellular communication, battery power and a sealed polyurethane housing. It reports routine long-term tilt changes, but can also wake on tilt or vibration events and capture high-frequency waveform features for structural health assessment. RWIN030 集成三轴 MEMS 加速度计、磁力计、蜂窝通信、电池供电与全密封聚氨酯外壳。它既能长期上报倾角趋势，也能在倾角或振动触发时唤醒采集，提取高频振动特征用于结构健康分析。
- ✓Five measurement elements五类测量要素
Tilt, acceleration, vibration frequency, vibration amplitude and ambient temperature are acquired by one device.倾角、加速度、振动频率、振动幅值与环境温度由同一设备同步采集。
- ✓Scheduled + triggered reporting定时采集 + 触发上报
Routine low-power monitoring is paired with event-triggered high-frequency sampling when tilt or vibration changes.日常低功耗监测与事件触发高频采集结合，倾角或振动变化时立即提高采样并上报。
- ✓No field wiring现场免布线
NB-IoT / 4G communication and battery operation fit bridges, towers, slopes and outdoor structures where cabling is expensive or fragile.NB-IoT / 4G 通信与电池供电，适合桥梁、铁塔、边坡和户外结构等布线成本高或线路易损场景。
- ✓IP68 sealed dome housingIP68 全密封圆顶外壳
High-strength aging-resistant polyurethane housing with a bolt-down base for harsh outdoor natural environments.高强度抗老化聚氨酯外壳，法兰底座固定，适应严苛户外自然环境。
A Low-Power Watch Mode with High-Frequency Event Capture低功耗守候，高频捕捉事件
The sensor normally stays in a reduced-rate watch mode. When scheduled acquisition is due, or when tilt or vibration is detected, it switches to working mode, samples at high frequency and extracts vibration-domain features using FFT. 设备平时处于降频守候状态；到达定时采集时刻，或检测到倾角/振动变化时，立即切换到工作模式进行高频采样，并通过 FFT 提取振动频域特征。

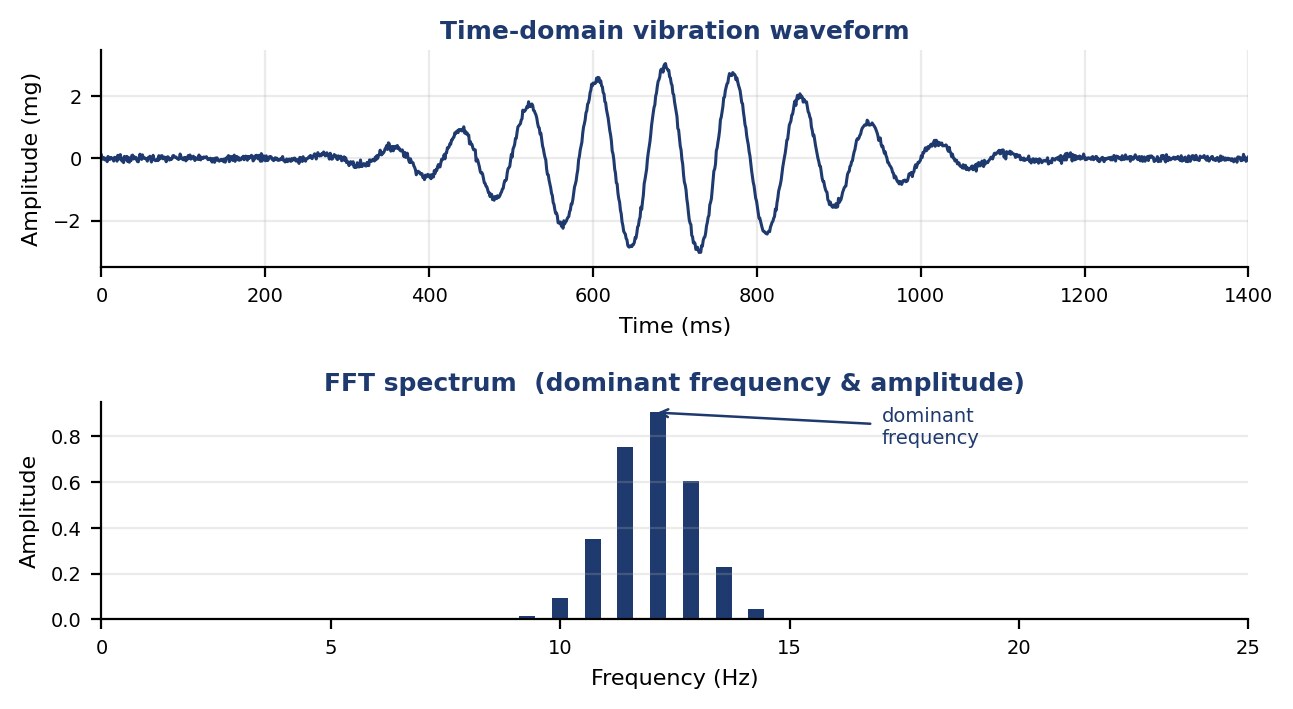

From waveform to usable engineering indicators 从波形到可用的工程指标
For each acquisition period, RWIN030 can provide tilt, acceleration, vibration frequency, vibration amplitude, temperature, battery state and position metadata. The cloud platform then binds the data to measurement points, thresholds and project drawings. 每个采集周期内，RWIN030 可输出倾角、加速度、振动频率、振动幅值、温度、电池状态与定位信息。监测云平台再将这些数据绑定到测点、阈值和项目图纸中。
- 1Time-domain waveform时域振动波形
Captures event amplitude over time, useful for judging impact, short-term disturbance and vibration duration.记录事件幅值随时间变化，适合判断冲击、短时扰动与振动持续时间。
- 2FFT frequency spectrumFFT 频谱分析
Extracts dominant frequency and amplitude, turning raw vibration into structural-health features.提取主频与对应幅值，把原始振动转换成结构健康分析特征量。
- 3Temperature-linked interpretation结合温度解释数据
Temperature is recorded with the same device, making it easier to separate thermal effects from true motion.温度由同一设备同步记录，更容易区分热胀冷缩影响与真实结构运动。
RWIN030 Technical SpecificationsRWIN030 技术参数
The updated RWIN030 configuration adds temperature as a measured element, improves acceleration and vibration resolution, and supports NB-IoT or 4G network selection.新版 RWIN030 将温度列为测量要素，提升加速度与振动分辨率，并支持 NB-IoT 或 4G 网络二选一。
| Item项目 | Parameter参数 | Specification规格 |
|---|---|---|
| Measurement测量要素 | Elements要素 | Tilt, acceleration, vibration frequency, vibration amplitude, temperature倾角、加速度、振动频率、振动幅值、温度 |
| Tilt倾角 | Range量程 | ±90° |
| Resolution分辨率 | 0.001° | |
| Accuracy 1精度 1 | 0.005° within ±15°（±15° 内） | |
| Accuracy 2精度 2 | 0.01° within ±90°（±90° 内） | |
| Temperature drift温度漂移 | <0.01° (-20 ℃ ~ +50 ℃) | |
| Acceleration加速度 | Range量程 | ±2g |
| Resolution分辨率 | 0.001 mg (1 µg) | |
| Accuracy精度 | 0.01 mg (10 µg) | |
| Vibration振动 | Frequency频率 | Resolution 0.1 Hz; bandwidth 200 Hz分辨率 0.1Hz；带宽 200Hz |
| Amplitude幅值 | Resolution 0.01 mg; accuracy 0.05 mg分辨率 0.01mg；精度 0.05mg | |
| Noise density噪声密度 | 18 µg/√Hz (≈0.001 °/√Hz) | |
| Recommended amplitude适用幅值 | Suitable for amplitude above 1 mg适用于 1mg 以上幅值 | |
| Reporting上报 | Interval周期 | 0s ~ 7200s; default 7200s默认 7200s |
| Communication通信 | Network网络 | NB-IoT / 4G (select one)（二选一） |
| Interface接口 | Local port本地接口 | USB-C (configuration & charging)（配置与充电） |
| Storage存储 | Onboard flash机内存储 | 512 MB flash (optional)（可选） |
| Power供电 | Battery电池 | Non-rechargeable Li-SOCl2 or rechargeable lithium battery不可充电锂亚电池或可充电锂电池 |
| Operating life工作寿命 | Li-SOCl2: up to 36 months at 4 acquisitions/day; rechargeable: up to 12 months锂亚电池：按每日 4 次采集最长 36 个月；可充电版本最长 12 个月 | |
| Charging充电 | USB-C, 5 V (rechargeable version)（可充电版本） | |
| Consumption功耗 | <0.65 mA @ DC 3.6 V | |
| Protocol协议 | Standard标准 | MQTT v3.1.1 |
| Mechanical机械 | Dimensions尺寸 | Bottom OD 13 cm; height 15 cm底部外径 13cm；高度 15cm |
| Material材料 | High-strength aging-resistant polyurethane高强度抗老化聚氨酯 | |
| Weight重量 | 1.5 kg | |
| Environment环境 | Temp. / rating温度 / 防护 | -20 ℃ ~ +85 ℃ / IP68 |
Where RWIN030 Adds Value Beyond a Tiltmeter哪些场景需要“倾角 + 温度 + 振动”
Choose RWIN030 when rotation, vibration and temperature need to be interpreted together, or when a remote point must operate without cabling or external power.当结构转动、振动扰动与温度影响需要放在一起解释，或远端测点无法布线/供电时，优先选择 RWIN030。
Building Tilt & Vibration建筑倾斜与振动
Tracks slow tilt while capturing short vibration events from construction, demolition or traffic disturbance nearby.跟踪建筑慢变倾斜，同时捕捉周边施工、拆除或交通扰动引起的短时振动事件。
Transmission & Telecom Towers输电与通信铁塔
Cable-free tilt and vibration monitoring for unpowered outdoor towers, with IP68 protection and battery operation.无供电户外铁塔的免布线倾角与振动监测，IP68 防护，电池长期运行。
Bridge Tilt Monitoring桥梁倾斜监测
Combines pier or deck tilt trends with vibration frequency signatures under traffic and wind.将桥墩/桥面倾角趋势与车辆、风致振动的频率特征结合分析。
Slope and Rockfall Warning边坡与崩塌预警
Low-power remote points can be deployed on unstable blocks or protection structures where wiring is impractical.可部署在不稳定块体或防护结构上，适合布线困难的低功耗远程监测点。
Unattended Outdoor Sites无人值守户外点位
Sealed housing and cellular upload support long unattended monitoring without sunlight or grid power.全密封外壳与蜂窝上报支持长期无人值守，不依赖日照或市电。
Event-Based Safety Assessment事件型安全评估
Dominant frequency, amplitude and tilt change help distinguish normal environmental vibration from abnormal structural response.主频、幅值与倾角变化联合判断，帮助区分正常环境振动与异常结构响应。
Bolt Down, Bind, Set Thresholds固定、绑定、设置阈值
RWIN030 is designed for simple civil installation. The important engineering work is choosing a rigid mounting point, binding the device correctly and setting thresholds that reflect the structure's risk model.RWIN030 现场土建安装简单，真正关键的是选择刚性安装点、正确绑定设备，并按结构风险模型设置阈值。
Field installation checklist现场安装检查表
- 1Install on a rigid structural surface安装在结构刚性表面
The bolt-down base must couple directly to the monitored member, not to loose render, tiles or temporary fixtures.法兰底座必须与被测构件刚性连接，不应装在松动抹灰层、瓷砖或临时支架上。
- 2Align the sensitive axes对准敏感轴向
Mark the monitored direction before drilling; record the initial tilt and installation orientation as the baseline.钻孔固定前先标记监测方向；记录初始倾角与安装方向作为基准。
- 3Bind network and device ID绑定网络与设备编号
Choose NB-IoT or 4G before delivery, then bind the point in the cloud automation-management page.发货前确认 NB-IoT 或 4G 网络制式，现场在云平台自动化管理中绑定测点。
- 4Set rate and cumulative thresholds设置速率与累计阈值
Use control indicators for tilt rate, cumulative tilt and vibration-event alarms per point.按测点设置倾角速率、累计倾角与振动事件等控制指标。
Cloud workflow云平台工作流
- ✓Project overview项目总览
Project details, location, stakeholders and remarks are maintained in one project record.项目名称、地址、参建单位与备注统一维护在项目档案中。
- ✓Monitoring cloud map监测云图
Measurement points are placed on drawings or maps, with alarm status visible directly on the project view.测点布设在设计图或地图上，报警状态可在项目视图中直接查看。
- ✓Data summary & analysis数据汇总与分析
Tilt, vibration and temperature series can be filtered by time, form type and measurement zone.可按时间、表单类型与分区筛选倾角、振动与温度序列。
- ✓Daily reports and automation status日报与自动化状态
Automated points feed daily reports and device-status management for O&M teams.自动化测点数据进入日报，并支持运维团队查看设备在线与采集状态。
Field Questions, Straight Answers现场常见问题
How is RWIN030 different from a normal wireless tiltmeter?RWIN030 和普通无线倾角仪有什么区别？
When should I choose RWIN030 instead of the tiltmeter series page product?什么时候选 RWIN030，而不是倾角仪系列里的普通产品？
How long does the battery last?电池能用多久？
Does it need sunlight or external power?需要日照或外部供电吗？
Which network should we choose: NB-IoT or 4G?NB-IoT 和 4G 怎么选？
Can it replace a professional vibration analyzer?它能替代专业振动分析仪吗？
From Network Selection to Long-Term O&M从网络选型到长期运维
Our engineers help choose NB-IoT or 4G, configure reporting intervals, set thresholds and bind the device to the Rasber Monitoring Cloud.工程师协助选择 NB-IoT 或 4G，配置上报周期、设置阈值，并将设备绑定到瑞茨柏监测云平台。
Fast standard-product shipment and rapid customization response.标准产品快速发货，定制需求快速响应。
Remote configuration, firmware upgrade and cloud-platform onboarding support.支持远程参数配置、固件升级与云平台接入指导。
Electrical-component warranty and full-lifecycle technical service.电气部件质保与全生命周期技术服务。
MQTT v3.1.1 based communication for cloud integration.基于 MQTT v3.1.1 的通信协议，便于云端集成。
Often Deployed Together常见配套组合
Tiltmeter Series倾角计系列
For long-term tilt monitoring where vibration-event capture is not required.用于不需要振动事件捕捉的长期倾角监测场景。
Learn more了解详情 →
Settlement Monitoring沉降监测系列
Pairs with tilt and vibration to complete the settlement + rotation + event picture.与倾角/振动配套，形成沉降 + 转动 + 事件的完整变形画像。
Learn more了解详情 →
Rasber Monitoring Cloud监测互联云平台
Threshold alarms, automation management, cloud maps and daily reports for wireless sensors.为无线传感器提供阈值告警、自动化管理、监测云图与日报。
Learn more了解详情 →Need specs, pricing or a demo?需要详细规格、报价或演示？
Tell us your structure type, network conditions and reporting frequency — our engineers will recommend the RWIN030 configuration, threshold strategy and cloud setup.告诉我们结构类型、网络条件与上报频率——工程师将推荐 RWIN030 配置、阈值策略与云平台接入方案。
