Map and Multi-project Overview地图与多项目总览
Locate projects geographically, filter operating context and enter the exact project workspace.按地理位置查看项目，筛选运营上下文并进入具体项目工作区。
Software Platform 01软件平台 01
Rasber Monitoring Cloud Platform瑞茨柏监测互联云平台
One browser workspace from the project map and field-device access to monitoring data, trend analysis, multi-level alarms and reporting. Each value remains connected to its project, district, monitoring item, point and acquisition source.从项目地图和现场设备接入，到监测数据、趋势分析、多级预警与报表输出，全部在一个浏览器工作空间内完成。每个测值都能回到所属项目、区域、监测项、测点与采集来源。
PROJECT · DISTRICT · ITEM · POINT · DEVICE · DATA · ALARM · REPORT
Operational data chain运营数据链
From Field Measurement to Managed Action从现场测量到受控处置
The platform keeps acquisition, data quality, thresholds, alarms, reports and audit records inside one governed project context.采集、数据质量、控制指标、预警、报表与审计记录都保留在同一套受控项目上下文中。
01 · CONNECT
Devices and Sources设备与数据源
Register devices, channels, forwarding and acquisition identities.登记设备、通道、转发关系与采集身份。
02 · ORGANIZE
Project Hierarchy项目层级
Project, district, monitoring item and point stay explicit.明确项目、区域、监测项与测点层级。
03 · VERIFY
Data Quality数据质量
Review missing data, changes, exceptions and source logs.检查缺测、变化、异常与数据源日志。
04 · JUDGE
Rules and Alarms规则与预警
Apply value, cumulative-change and rate thresholds.按测值、累计变化与变化速率判定。
05 · DELIVER
Reports and Views报表与可视化
Daily reports, statistics, comparison, maps, BIM and video.输出日报、统计、对比、云图、BIM 与视频。
Project demonstration项目演示
Wusong River Bridge Automated Monitoring · Shihu Bridge吴淞江大桥自动化监测 · 石湖大桥
The presentation below is prepared from sanitized archived project records. It shows how the platform organizes monitoring coverage, force and displacement histories, and project-specific alarm rules without exposing account or customer information.以下展示基于项目历史记录脱敏整理，用于说明平台如何组织监测范围、力与位移时程以及项目控制规则，不包含账号及客户单位信息。
Archived data range历史数据范围2020-03-27
2023-10-30
2023-10-30
2Monitoring districts监测区域Bridge body / piers大桥主体 / 桥墩
6Monitoring items监测项目Settlement, force, joint沉降、内力、伸缩缝
38Numbered points编号测点One governed hierarchy统一项目层级
3,944Mechanical time entries力学数据时次Long-running hourly records长期小时级记录
ZT1 — ZT12
Bridge-body Settlement大桥主体沉降
Twelve points retain elevation history and relative change.12 个测点保留高程时程与相对变化。
ZYL1 — ZYL7
Main-member Pressure主杆压力
Seven force points support time-history and interval statistics.7 个力学测点支持时程与区间统计。
DLL1 — DLL14
Hanger Tension吊杆拉力
Fourteen points compare load distribution and changes.14 个测点用于比较拉力分布及变化。
LF1 — LF4
Expansion Joints伸缩缝
Four displacement points track current and cumulative movement.4 个位移测点跟踪当前值与累计变化。

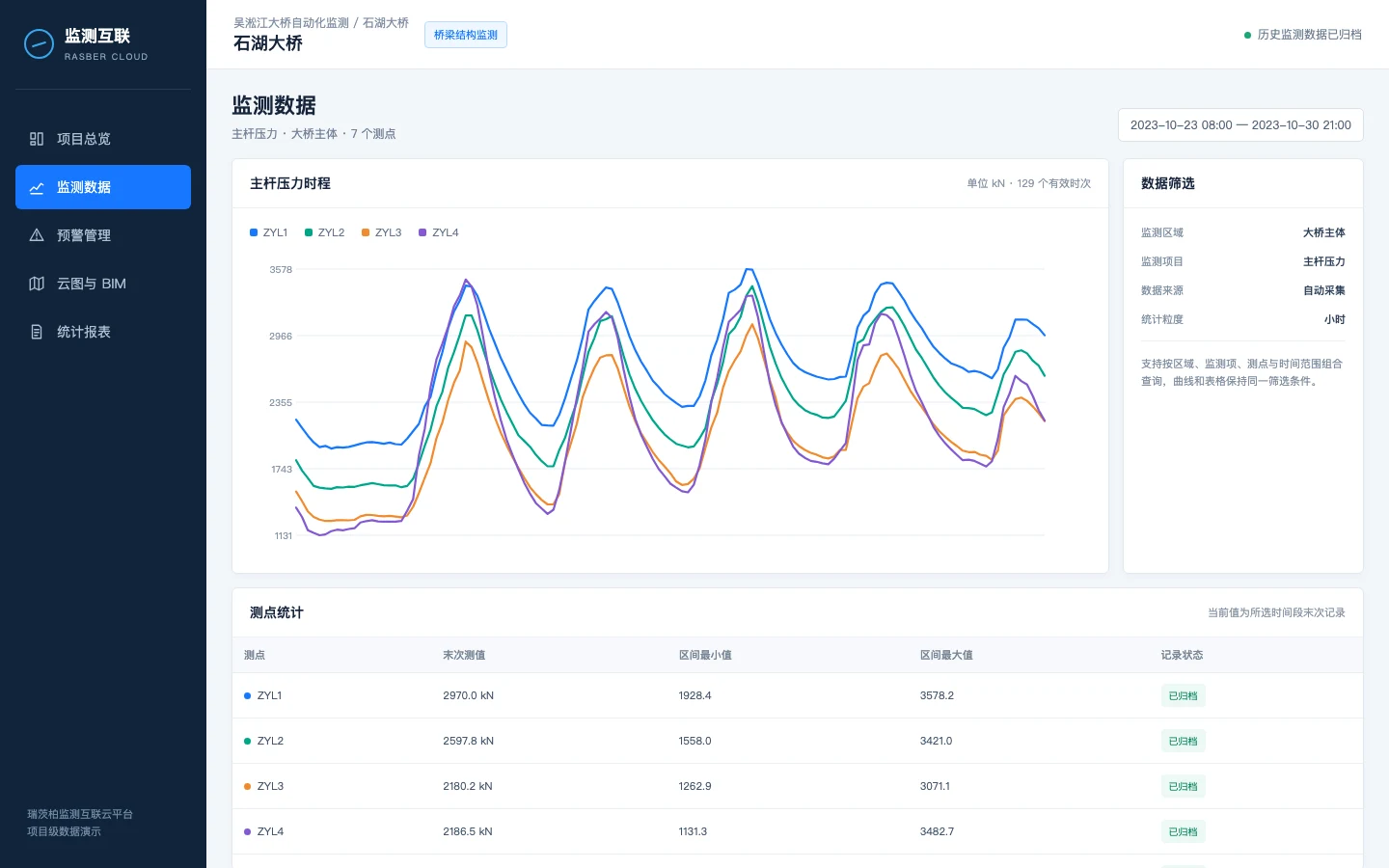

Trend and table stay aligned曲线与表格使用同一筛选条件
Trace Every Trend Back to Its Point每条趋势都能回到具体测点
Select the district, monitoring item, source and time range once. The platform returns the same evidence as curves and point statistics, including the final value, interval minimum and maximum. In the Shihu Bridge demonstration, the main-member pressure view covers seven points and 129 valid hourly records in the selected week.一次选择区域、监测项、数据源与时间范围，平台以曲线和测点统计表呈现同一组证据，包括末次测值、区间最小值与最大值。石湖大桥演示中的主杆压力页面覆盖 7 个测点，所选一周包含 129 个有效小时记录。
- 01Multi-point comparison多测点对比
Compare spatial distribution and common response patterns.比较空间分布与共同响应规律。
- 02Scoped queries组合筛选
Keep project, district, item, source and time explicit.明确项目、区域、监测项、来源与时间。
- 03Source-level traceability数据源可追溯
Link the result to its point, device and forwarding path.结果可回到测点、设备与转发链路。

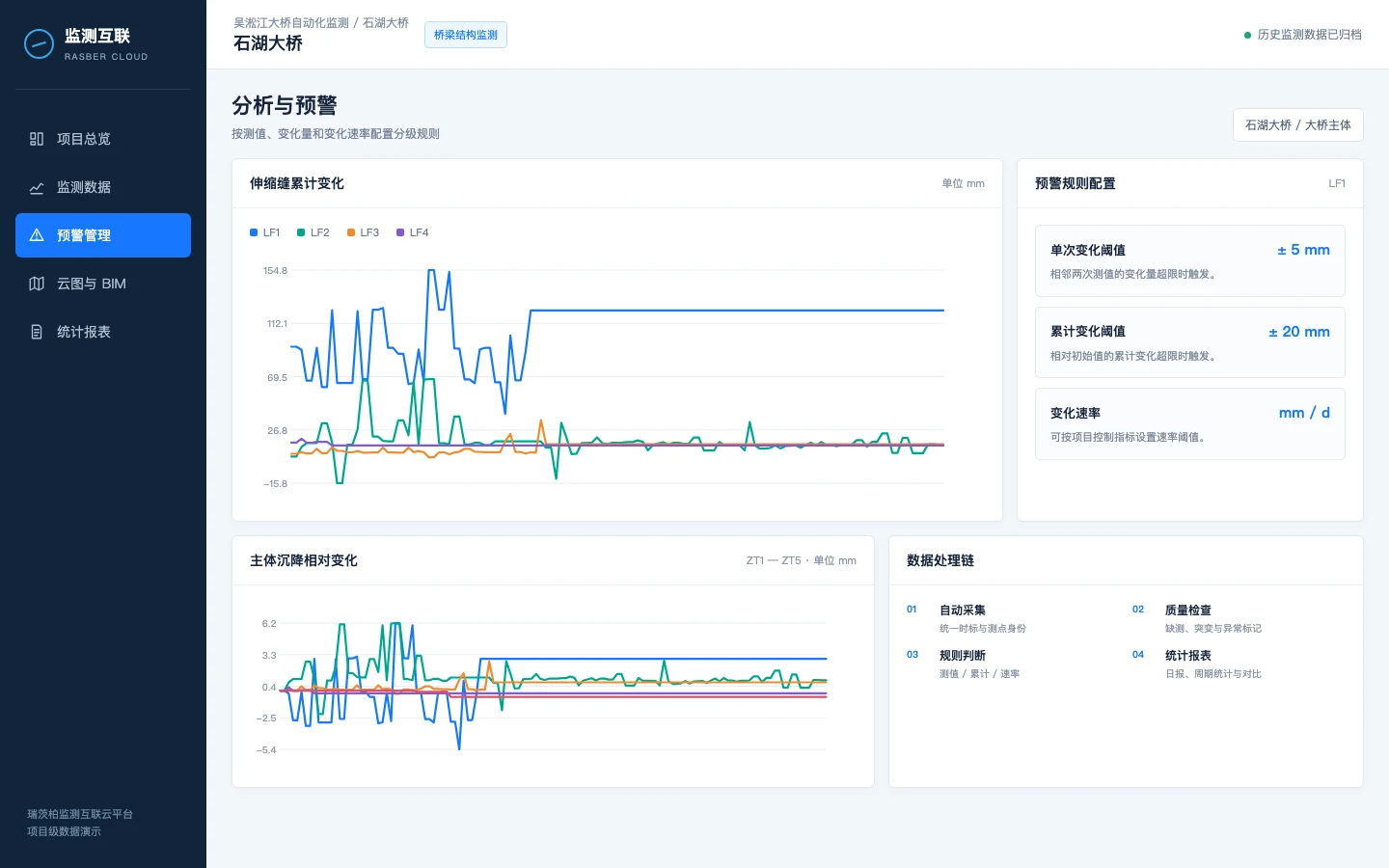

Project-specific control logic项目化控制逻辑
Judge Value, Accumulation and Rate Separately分别判断测值、累计变化与变化速率
Different quantities fail in different ways. The platform lets each monitoring item define current-value, cumulative-change and rate-of-change rules instead of forcing every sensor into one threshold. The same workspace then supports alarm review, daily reports, period statistics and data comparison.不同监测量对应不同的风险演化方式。平台允许每个监测项分别设置当前测值、累计变化与变化速率规则，而不是用一个阈值处理所有传感器；随后可在同一工作空间中完成预警复核、日报、周期统计与数据对比。
CURRENTChange from the previous measurement相邻测次变化
TOTALAccumulation from the project baseline相对项目初始值的累计变化
RATEChange normalized by elapsed time按时间归一的变化速率
LEVELWarning and alarm severity levels预警与报警等级
Platform capabilities平台能力
One Workspace for the Full Monitoring Operation一套工作空间覆盖监测运营全流程
The same project structure supports engineering data, maps, devices, visual context, permissions and operational records.同一套项目结构同时承载工程数据、地图、设备、可视化上下文、权限与运营记录。
District, Item and Point Management区域、监测项与测点管理
Use a stable hierarchy so device data, thresholds, drawings and reports remain attached to the correct object.通过稳定层级将设备数据、控制指标、图纸与报表绑定到正确监测对象。
Devices, Acquisition and Forwarding设备、采集与数据转发
Manage automated devices, inspect incoming data and configure controlled forwarding to downstream systems.管理自动化设备、检查入站数据，并向下游系统配置受控数据转发。
Daily, Summary and Period Statistics日报、汇总与周期统计
Move from point history to daily reports, period statistics and comparison with third-party records.从测点时程进入日报、周期统计及第三方数据对比。
2D/3D Cloud Maps, BIM and Video二维/三维云图、BIM 与视频
Place readings in drawings, three-dimensional models and video context for faster engineering interpretation.将测值放入图纸、三维模型和视频上下文中，提高工程判读效率。
Roles, Permissions and Logs角色、权限与日志
Separate project responsibilities and retain system, forwarding and operational records for review.划分项目职责，并保留系统、转发及运营记录供复核。
Open sensor ecosystem开放的传感器生态
Static, Dynamic and Environmental Data in One Project静态、动态与环境数据进入同一个项目
The platform can organize inclinometer, settlement, GNSS, vibrating-wire, water-level, rainfall, tilt, temperature and humidity, cable-force, noise, bridge-monitoring and wireless vibration/tilt data alongside third-party sources.平台可在同一项目中组织测斜、沉降、GNSS、振弦、水位、雨量、倾角、温湿度、索力、噪声、桥梁监测及无线温振倾角数据，并兼容第三方数据源。
Planning a long-term monitoring platform?正在规划长期监测平台？
Send the project hierarchy, sensor list, acquisition interfaces, alarm rules, user roles and reporting requirements. Rasber will map the data path before deployment.提供项目层级、传感器清单、采集接口、预警规则、用户角色与报表要求，瑞茨柏将在部署前梳理完整数据链路。
