In-Place Inclinometer固定式测斜仪
7×24 automated deep-displacement monitoring. One RS485 cable chains up to 128 sensors, and a 120 g/m carbon-fiber rod lets a single operator install by hand — even in 60–100 m boreholes. 7×24 小时自动化深部位移监测。RS485 总线一根电缆串联多达 128 根传感器，120g/m 碳纤维杆身让单人徒手即可完成 60–100 米深孔安装。
Real-time data that manual surveys can never capture 捕捉人工巡检不可能发现的实时数据
If the sliding inclinometer solves manual-survey efficiency, the in-place inclinometer answers the need for 7×24 automated monitoring. It samples continuously at minute-level frequency — as fast as one reading per minute — capturing the instantaneous changes a daily site visit could never detect. 如果说滑动式解决的是"人工巡检效率"问题，固定式测斜仪满足的就是 7×24 小时自动化监测的需求。它以分钟级频率持续采集数据——最快 1 分钟一次，捕捉人工巡检根本不可能发现的瞬时变化。

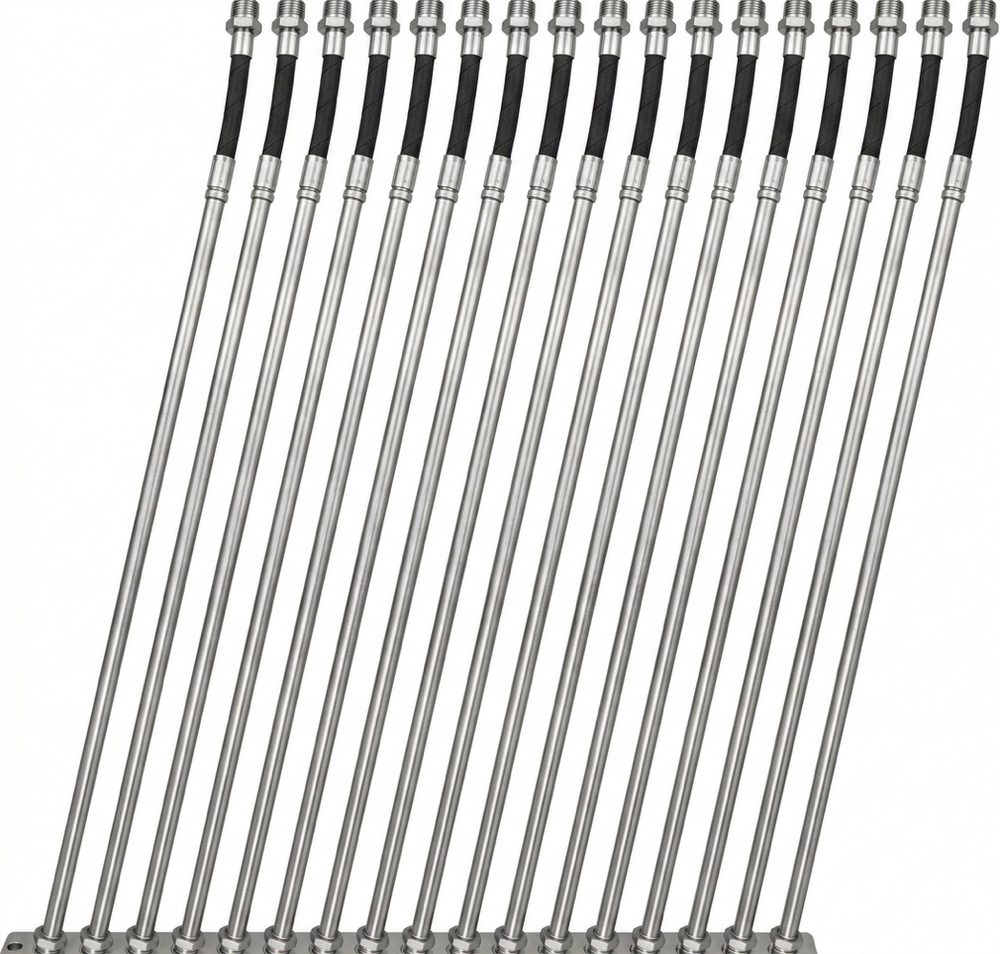

- ✓Carbon-fiber rod, 120 g/m碳纤维杆身，每米仅 120 克
One-fifth the weight of a traditional metal rod — light yet high-strength (≥5.5 kN).仅为传统金属杆身的五分之一——轻巧且高强度（抗拉 ≥5.5kN）。
- ✓One RS485 cable, 128 nodes, AutoIDRS485 一根电缆串联 128 节，AutoID 自动编址
A single bus chains 128 segments; AutoID auto-addressing means no per-unit configuration.单根总线串联 128 节传感器；AutoID 自动编址，安装时无需逐一配置。
- ✓Electrolytic-solution sensor option可选电解质溶液传感器
Proprietary sensing element with 1×10⁻⁸-level long-term stability for multi-year projects.自研敏感元件，长期稳定性达 1×10⁻⁸ 量级，适用于多年期长期监测项目。

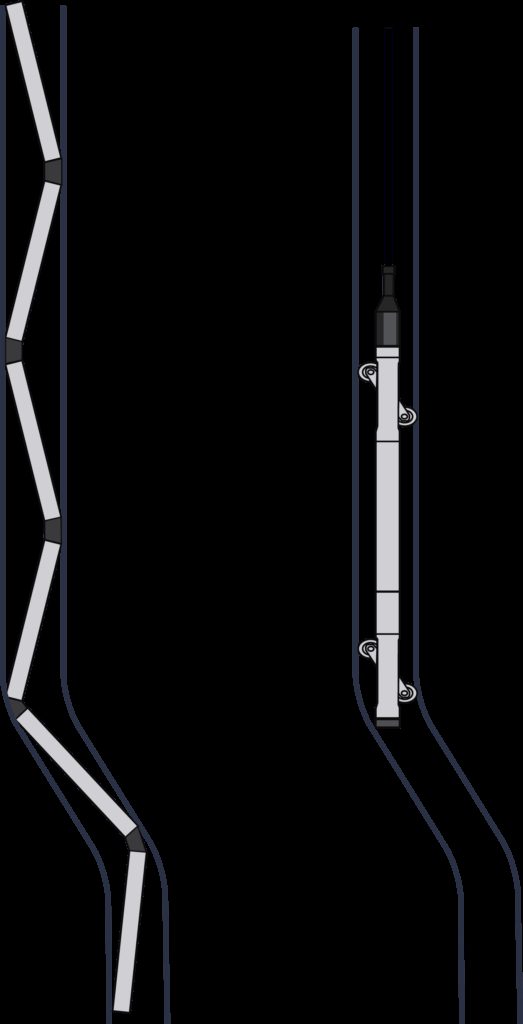

A Permanent Sensor String Inside the Casing永久封存在测斜管内的传感器串
If the sliding inclinometer is a stethoscope lowered into the borehole for each visit, the in-place inclinometer is a permanently implanted ECG: it seals the entire manual-survey process inside the grooved casing and runs it automatically, around the clock.如果说滑动式是临时下井的"听诊器"，固定式就是永久植入的"心电图"：它把每次手测的过程永久封存在带导槽的测斜管内，全天候自动运行。
- ✓Permanent, not periodic永久埋设，而非周期巡测
A sliding system competes on flexibility — one probe surveys many boreholes weekly or monthly during construction. The in-place type competes on permanence: installed once, it samples automatically at minute-level frequency with no site visits. Projects running three years or longer, or sites needing remote access, are IPI territory; sub-one-year construction monitoring usually favors the sliding type.滑动式以灵活性取胜——施工期一台仪器多孔轮测，周/月一次。固定式以永久性取胜：一次安装，分钟级自动采集，无需到场。周期三年以上或需要远程查看的项目选固定式；一年以内的施工期监测通常选滑动式。
- ✓Segment number ↔ depth, on record节点编号 ↔ 深度，一一对应建档
Segments are installed bottom-up, and each one is logged into a segment-number-to-depth table as it goes in. Any later anomaly in the remote data maps straight back to a specific segment at a specific depth — so maintenance targets one node instead of guessing.节段自下而上逐节安装，每装一节即录入"节点编号→深度"对照表。日后远程数据出现任何异常，都能直接对应到具体深度的具体节段——维护有的放矢，而非凭空猜测。
- ✓Cloud-managed alarms, automatically云端报警阈值，自动触发
Devices are bound to the cloud platform at the factory; on site, the controller registers and comes online by itself. Engineers then set rate and cumulative alarm thresholds per measuring point — when a reading exceeds them, the platform pushes SMS alerts, with multi-account views for owner, contractor, supervisor and third parties.设备出厂时即绑定云平台，现场部署后控制器自动注册上线。工程师为每个测点配置速率/累计变量报警阈值——数据超限即推送报警短信，并支持业主、施工、监管、第三方多账户视角。
What the Data Looks Like数据长什么样
Each segment continuously measures tilt over its gauge length; the platform converts the chain of readings into a displacement-vs-depth profile. Because sampling is automatic — as fast as one reading per minute — the profile is redrawn continuously, revealing how deflection develops over time instead of waiting for the next manual survey.每节传感器在其标距内连续测量倾角，平台将整串读数换算为"位移-深度"剖面曲线。由于采集全自动——最快 1 分钟一次——曲线持续刷新，变形如何随时间发展一目了然，无需等待下一次人工测量。
On network loss, each string buffers data in 16 GB of onboard storage — over a year of history — and resumes upload automatically once the connection recovers.断网时，板载 16GB 存储自动缓存数据——可保存一年以上历史数据——网络恢复后自动续传。
Built for Unattended, Long-Term Duty为长期无人值守而生
Two figures stand out: 0.05 W per segment means the system runs stably on solar power alone, and 5.5 kN tensile strength keeps deep-borehole installation structurally safe.两个数字值得特别强调：单节功耗仅 0.05 瓦，太阳能供电也能长期稳定运行；抗拉强度 5.5 千牛，确保深孔安装时的结构安全。
| Parameter参数 | RIPI 1025S SpecificationRIPI 1025S 规格 |
|---|---|
| Sensor传感器 | MEMS accelerometer / electrolytic-solution sensor (optional)MEMS 加速度计 / 电解质溶液传感器（可选） |
| Range量程 | ±15° / ±30° |
| Resolution分辨率 | 0.01 mm / 0.005 mm |
| Repeatability重复性 | ±0.003° |
| Long-term stability长期稳定性 | <±0.01% |
| Operating temperature工作温度 | -20 ~ 70 ℃ |
| Waterproof rating防水等级 | IP68 / 2 MPa |
| Power consumption功耗 | ≤0.05 W / segment≤0.05W / 节 |
| Tensile strength抗拉强度 | ≥5.5 kN |
| Rod length杆身长度 | 0.79 m / 1 m |
| Net weight净重 | ~1 kg / segment约 1kg / 节 |
"Light yet Strong" — the Design Philosophy"轻而强"的设计哲学
While holding 5.5 kN tensile strength, the carbon-fiber rod cuts weight to one-fifth of a traditional metal rod — so operators install in 60–100 m deep boreholes by hand, with no hoisting equipment.碳纤维杆身在保持 5.5 千牛抗拉强度的同时，将重量降到传统金属杆身的五分之一——60 到 100 米深孔安装可由操作人员徒手完成，无需大型吊装机械。
- 1Centralizing wheel set定位轮组
Fixed wheels plus spring-loaded wheels keep the sensor precisely aligned in the casing.固定轮加弹簧动轮，确保传感器在测斜管中精确对位。
- 2Rod — carbon fiber / aluminum alloy杆身——碳纤维 / 铝合金
120 g/m, one-fifth the weight of a traditional metal rod, with deep anodized corrosion protection.每米仅 120 克，是传统金属杆身的五分之一，深度阳极氧化防腐。
- 3High-precision tilt sensor高精度倾角传感器
The core measuring element: MEMS, or the proprietary electrolytic-solution sensor for ultimate long-term stability.核心测量元件：MEMS，或自研电解质溶液传感器，长期稳定性更优。
- 4Universal joint connection万向节连接
Flexibly links the segments to accommodate a degree of casing bend.各节之间灵活对接，适应一定角度的弯曲。
- 5Positioning cable + casing-mouth fixture定位钢索 + 管口装置
Anchors and protects the entire sensor string.固定和保护整个传感器串。
Bus Connection总线式连接
One RS485 cable chains 128 segments. Each sensor ships with a factory-unique long address; AutoID assigns short addresses on site — plug-and-play, no per-unit configuration.RS485 一根电缆串联 128 节。每个传感器出厂带唯一长地址，现场 AutoID 自动分配短地址——即插即用，无需逐一配置。
Smart Automation智能自动化
Scheduled sampling configurable from 1 min to 24 h; ultra-low-power sleep mode; breakpoint-resume on network loss with 16 GB local storage; remote configuration and firmware upgrades.采集频率 1 分钟至 24 小时灵活配置；休眠模式超低功耗；16GB 本地存储确保断网续传；支持远程配置与固件升级。
Long-Term Stability高可靠 · 长期稳定
Even the best MEMS accelerometers drift at the 1×10⁻⁵ level over the years; Rasber's proprietary electrolytic-solution sensor holds 1×10⁻⁸ — three orders of magnitude less drift, ideal for 5-year-plus monitoring.最好的 MEMS 加速度计长期稳定性也只有 1×10⁻⁵ 量级；瑞茨柏自研电解质溶液传感器达 1×10⁻⁸——漂移小三个数量级，是 5 年以上长期监测的最稳方案。
In-place + sliding, better together: the in-place type captures instantaneous changes in real time (such as tidal fluctuations); the sliding type cancels zero drift with forward-and-reverse runs. Combined, they form the most complete deep-displacement monitoring solution. 固定式 + 滑动式，搭配更完整：固定式实时捕捉瞬时变化（如潮汐波动），滑动式通过正反测消除零漂。两者搭配使用，构成最完整的深层位移监测方案。
Installation: 12 Steps, Bottom-Up安装：自下而上 12 步
Before starting: identify the string's top (the segment with the aviation-plug cable) and bottom (no plug), and clamp the steel wire rope to the bottom segment. Three checkpoints gate the whole procedure — fixed-wheel orientation, connecting-rod engagement, and steel-wire-rope lock-off.开始前：先辨认序列头尾——顶部节点带电缆航空插头、底部节点无插头，并将钢丝绳用绳夹固定在底部节点。整个流程有三道"门禁"——固定轮朝向、连接杆对插、钢丝绳锁死。
- 1Compress the spring-loaded wheels压住动轮弹簧
Press the moving-wheel springs on the segment firmly before it enters the casing.用力压住待安装节点本体上的动轮弹簧。
- 2Slide the wheel set into the guide grooves — checkpoint导轮组滑入导槽——门禁
The fixed wheels must face the expected deformation direction of the excavation. Wrong orientation distorts all subsequent data.本体固定轮必须朝向基坑预期形变方向。方向装错，后续所有数据失真。
- 3Mate the connecting rod — checkpoint连接杆对插——门禁
Carefully insert the quick-connect port of the rod above the segment onto the metal connecting rod — fully seated, no gap. Any gap is an error source.将连接杆快速连接端口与本体金属连接杆仔细对插，完全插紧，不留空隙。留缝即是误差源。
- 4Tension and lock the steel wire rope — checkpoint钢丝绳抽紧锁死——门禁
Pull the wire rope through the rod fully taut, then lock the segment's rope clamp. An untensioned rope leaves segments unloaded and lets them drop out of position.在连接杆另一端将钢丝绳完全抽紧，再将本节钢丝绳扣紧锁死。未张紧即空载，节段会掉位。
- 5Secure the spare cable扣紧多余电缆
Wind excess cable around the connecting rod and fasten with cable clips, so it cannot rub against the casing wall.将多余电缆缠绕在连接杆上并用电缆扣扣紧，防止电缆在管内摩擦管壁。
- 6Lower and connect the next segment下放并对接下一节
Push the rod down, then insert the next segment's bottom metal rod into the quick-connect port — again with no gap.顺势将连接杆向下推动，把下一节底部金属连接杆插入上一节快速连接端口内，同样不留空隙。
- 7Repeat for every segment逐节重复
Repeat steps 1–5 segment by segment, bottom-up, until the string is complete.自下而上逐节重复第 1–5 步，直至整串安装完成。
- 8Lead out the top cable引出顶部电缆
Bring the top segment's cable and aviation plug out through the side slot of the casing-mouth protector.将顶部节点的电缆及航空插头从管口保护装置侧面孔槽引出。
- 9Seat the casing-mouth protector放入管口保护装置
Place the protector into the casing with its rim pressed onto the casing mouth.管口保护装置放入测斜管内，边缘压紧测斜管口。
- 10Tension the top wire, tighten the screws抽紧顶部钢丝绳，拧紧螺丝
Pull the wire rope above the protector until fully fixed, then tighten the butterfly screws on the protector.抽紧保护装置上方钢丝绳至完全固定，再拧紧管口保护装置上的蝴蝶扣螺丝。
- 11Stability check before power上电前稳固检查
Visually confirm the whole system sits firmly in the casing before energizing anything.先目视检查整套系统是否稳固安装在测斜管内，再上电。
- 12Power up and go online接电上线
Connect power and the controller, then bring the string online on the cloud platform — and verify the first remote reading before leaving site.接电、连接控制器、上线云平台——离场前先在云平台核对首次远程读数。
The Three Gates三道门禁
1 · Fixed-wheel orientation1 · 固定轮朝向
The fixed wheels must face the excavation's expected deformation direction. Installed the wrong way, readings persistently trend to one side — and the only remedy is re-installing with the correct orientation.固定轮必须朝向基坑预期形变方向。朝向装错，数据会持续偏向一侧——唯一的补救是重新拆装、调整朝向。
2 · Connecting-rod engagement2 · 连接杆对插
Every metal connecting rod must be fully seated in its quick-connect port with no gap. A loose segment-to-segment joint is a permanent error source.每根金属连接杆必须完全插入快速连接端口、不留空隙。节间对接松动就是长期误差源。
3 · Steel-wire-rope lock-off3 · 钢丝绳锁死
Tension first, then lock the rope clamp. If the rope will not pull through, the previous segment's clamp is still locked — open it before pulling. An untensioned rope leaves segments unloaded and out of position.先张紧，再锁死绳夹。钢丝绳抽不动，说明上一节绳夹仍处于锁死状态——先打开再抽。未张紧即空载，节段会掉位。
Field rule: no matter how tight the schedule, if any of the three checkpoints — fixed-wheel orientation, rod engagement, wire-rope lock-off — is wrong, stop and redo it. Continuing and patching later always costs more than redoing now. 现场红线：无论时间多紧，固定轮朝向、连接杆对插、钢丝绳锁死三件事任何一件做错，都必须停下来重做。继续装下去再补救的成本，永远高于停下来重做。
Hardware Up Close硬件细节
World-Leading Accuracy · High-Value Pricing世界领先精度 · 高性价比价格
RIPI 1025S combines a 128-node RS485 bus, AutoID addressing and a 120 g/m carbon-fiber rod. The result is less field wiring, simpler deep-borehole installation and a system designed for long-term automated monitoring.RIPI 1025S 将 128 节 RS485 总线、AutoID 自动编址与 120g/m 碳纤维杆身整合在同一系统中，减少现场布线，简化深孔安装，并支持长期自动化运行。
| Dimension对比维度 | Rasber RIPI 1025S | Conventional Multi-Cable Systems传统多线制系统 |
|---|---|---|
| Wiring布线方式 | One RS485 cable for 128 segments一根 RS485 电缆串联 128 节 | Multi-core cable, one run per sensor多芯电缆，每个传感器一根线 |
| Signal & addressing信号与编址 | Digital bus + AutoID auto-addressing数字总线 + AutoID 自动编址 | Analog signal, per-unit configuration模拟信号，需逐一配置 |
| Rod weight杆身重量 | Carbon fiber, 120 g/m碳纤维，120 克/米 | Metal rod, ~5× the weight金属杆身，约 5 倍重量 |
| Deep-borehole install深孔安装 | Single person, by hand, 60–100 m单人徒手安装 60–100 米 | Heavier string, hoisting often needed串体笨重，常需吊装设备 |
| Offline resilience断网保障 | 16 GB storage, breakpoint-resume, remote upgrade16GB 存储断网续传，远程升级 | Depends on external logger依赖外部采集仪 |
| Commercial model商务模式 | High-value project pricing高性价比项目定价 | Varies by system and service scope随系统与服务范围变化 |
Carbon fiber vs. a traditional metal rod.碳纤维 vs. 传统金属杆身。
One RS485 line replaces 128 cable runs.一根 RS485 总线替代 128 根线缆。
Electrolytic-solution option vs. ~1×10⁻⁵ for the best MEMS.电解质溶液方案 vs. 最佳 MEMS 约 1×10⁻⁵。
World-leading accuracy in a project-ready system.世界领先精度，系统面向工程项目落地。
Where Real-Time Data Proved Its Worth实时数据的价值，由工程验证
Rasber in-place inclinometers have supported long-term deep-displacement monitoring at major energy, foundation-pit and rail-transit projects. Minute-level automated sampling preserves changes that periodic manual surveys can miss.瑞茨柏固定式测斜仪已用于重大能源、基坑与轨道交通项目的长期深部位移监测。分钟级自动采集能够保留人工周期巡测难以捕捉的变化过程。
Coastal Energy Site — the "Ocean Breathing" of a 107 m Borehole沿海重大能源工程——107 米深孔的"海洋呼吸"
In reclaimed soft soil 23 m from the sea, automated monitoring recorded an approximately 12-hour periodic casing-top movement with an amplitude near 100 mm. The continuous series provided clear evidence for identifying the influence of Ocean Tide Loading.在距海约 23 米的填海软土场区，自动化监测记录到管口约 12 小时一次、幅度接近 100 毫米的周期性变化，连续数据为识别海洋潮汐负荷效应（OTL）提供了清晰依据。
Suzhou Xiangcheng Foundation Pit苏州相城基坑
Long-term automated monitoring captured twice-daily periodic displacement of the retaining structure, closely matching the tides — deformation that once-a-day manual surveys could never reveal.长期自动化监测捕捉到围护结构每日两次的周期性位移，与潮汐高度吻合——这种形变，一天最多去一次的人工测量根本不可能发现。
Suzhou Metro Line 5苏州地铁 5 号线
A deformation-rate exceedance triggered a Level III alert — pushed by SMS and app to the responsible parties before the construction team had noticed anything abnormal. The system is faster, and more accurate, than people.变形率超限成功触发 III 级预警——在施工方尚未察觉异常时，系统已通过短信与 App 推送至相关责任人。系统比人更快、更准。
Frequently Asked Questions常见问题解答
What kind of casing does the in-place inclinometer require?固定式测斜仪对测斜管有什么要求？
No data is coming through after power-up — what should we check first?接电后无数据上行，先查什么？
The data keeps trending to one side — is the sensor drifting?数据持续偏向一侧，是传感器漂移吗？
Who sets the alarm thresholds, and can they be changed later?报警阈值由谁设定？后期可以修改吗？
MEMS or electrolytic-solution sensor — which should a multi-year project choose?多年期项目该选 MEMS 还是电解质溶液传感器？
If remote data turns anomalous, how do you locate the problem segment?远程数据异常时，如何定位是哪一节的问题？
From Order to Long-Term O&M从下单到长期运维
Every unit ships with factory QC reports, and accuracy is traceable through third-party metrology institute calibration.每台设备随附出厂质检报告，精度可通过第三方计量机构校准溯源。
Standard products ship from stock; fast response on customization.标准产品现货发出，定制需求快速响应。
On-site installation guidance and partner enablement training.现场安装指导与合作伙伴赋能培训。
Backed by full-lifecycle technical service across four phases.四阶段全生命周期技术服务保障。
Cloud-hosted O&M, remote device-status monitoring and periodic reports.云端托管运维、设备状态远程监控与定期报告。
Often Deployed Together常见配套组合
Vibrating-Wire Sensors振弦式传感器
The deep-foundation-pit combination: in-place inclinometer plus VW sensors for the retaining structure.深基坑监测组合：固定式测斜仪 + 振弦式传感器，覆盖围护结构。
Learn more了解详情 →
Sliding Inclinometer滑动式测斜仪
Periodic manual surveys cross-validate the automated data — together they form the most complete deep-displacement solution.周期性人工测量与自动化数据交叉验证——两者搭配构成最完整的深层位移方案。
Learn more了解详情 →
DAQ & Cloud Platform采集与云平台
The RS485 bus terminates in the smart gateway, and data flows on to the Rasber Monitoring Cloud.RS485 总线接入智能网关，数据直达瑞茨柏监测云平台。
Learn more了解详情 →Need specs, pricing or a demo?需要详细规格、报价或演示？
Our engineers respond with datasheets, calibration certificates and a sensor-string configuration tailored to your borehole depth and sampling requirements.我们的工程师将提供数据手册、校准证书，并根据您的孔深与采集频率要求定制传感器串配置方案。
