Flexible Inclinometer (Shape Array, SAA)柔性测斜仪（阵列式位移计）
A spine-structure 3D deformation monitoring array for large deformation and complex conditions. Segmented like building blocks, it can be assembled on site, dismantled at project end and redeployed on the next project. 面向大变形与复杂工况的脊柱结构三维变形监测阵列。像搭积木一样分段拼接：现场组装，项目结束拆卸回收，运到下一个工地继续使用——以国际级精度提供更优性价比。
3D deformation, segmented & recoverable, multi-mode layout 三维变形 · 分段可回收 · 多模式布设
The RIPI 2010S measures displacement in X, Y and Z simultaneously through a spine-structure array of rigid sensing segments and flexible hinges. AutoID + RS485 chain up to 128 segments on a single cable — vertical in a borehole, horizontal in a trench, or ring-laid around a tunnel section. RIPI 2010S 采用刚性测量节段 + 柔性铰链的脊柱结构，同时测量 X、Y、Z 三个方向的位移。AutoID + RS485 一根线最多串联 128 节——可竖直入孔、水平埋设或沿隧道断面环向布设。
- ✓3-axis measurement, 0–360° coverage三轴测量 · 360° 全方位
Full all-direction sensing with no blind spots — hard to exceed range even in large deformation.全方位无死角，大变形工况下也不易超量程。
- ✓±0.002° measurement accuracy±0.002° 测量精度
Equivalent to 0.02 mm per 500 mm, with 0.005 mm displacement resolution.相当于 0.02mm/500mm，位移分辨率 0.005mm。
- ✓180° maximum bending最大弯曲 180°
Flexible hinges naturally adapt to curved layouts — tunnels, ring sections, uneven trenches.柔性铰链天然适应弯曲环境——隧道、环形断面、不平整沟槽。
- ✓IP68 · 3 MPa, tested to 4 MPaIP68 · 耐水压 3MPa，实测 4MPa
Backed by a Ministry of Water Resources 4 MPa test report; 8 MPa custom available.通过水利部 4MPa 检测报告，可定制 8MPa。

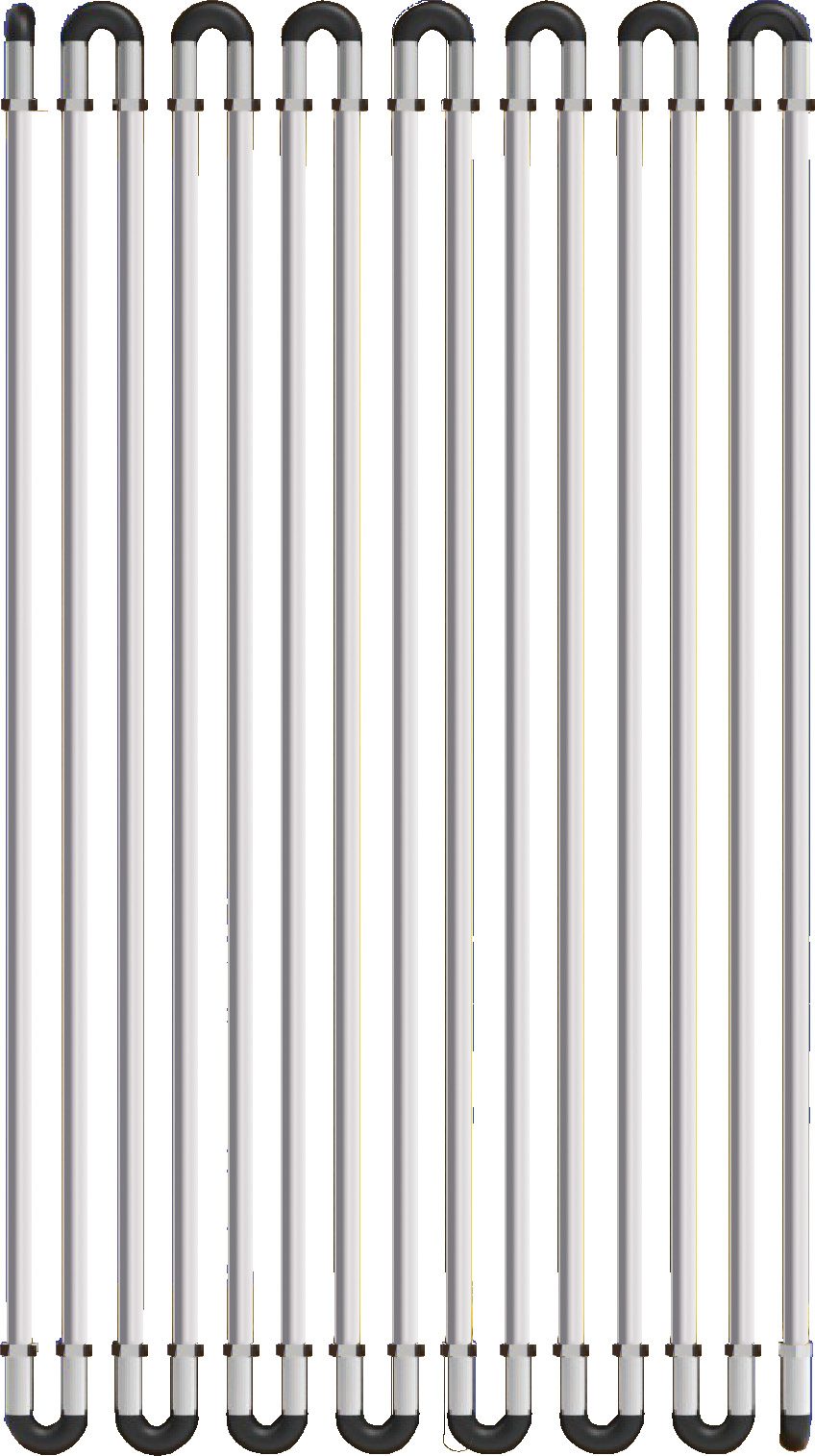

A Spine of Rigid Segments and Flexible Joints刚柔交替的“脊柱”结构
Rigid sensing tubes alternate with flexible joints — the tubes measure, the joints take the deformation. Each rigid segment carries a 3-axis MEMS sensor that measures its own orientation in space across 0–360°; chaining every segment's vector end-to-end reconstructs the full 3D deformation shape of the borehole or structure.硬管与软管刚柔交替：硬管是测量节段，内置三轴 MEMS 传感器，在 0~360° 范围内测量自身空间姿态；软管是变形节段，承担弯曲。将每节姿态向量首尾相接，即可重构钻孔或结构的完整三维变形形态。
01 · Sense01 · 感知
Every rigid segment measures its 3-axis orientation across 0–360° and logs its own temperature in real time.每节硬管在 0~360° 范围内测量三轴姿态，并实时记录本节温度。
02 · Flex02 · 变形
Flexible joints between segments take the bending, so measurement and deformation are cleanly separated.节间软管承担弯曲，测量对象与容许变形对象彻底分离。
03 · Reconstruct03 · 重构
Segment vectors are chained into the 3D shape curve; torsion correction aligns all segments to one coordinate system, better than 0.5°.节段向量逐节相加得到三维形状曲线；扭转校正将所有节段对齐统一坐标系，精度优于 0.5°。
A Continuous Profile, One Point per Segment连续剖面 · 每节一个测点
Every rigid segment is a measurement point, so the array returns a continuous displacement profile with no blind spots — and because acquisition is automated, the deformation trajectory can be replayed in real time as it develops. 每节硬管就是一个测点，阵列输出连续无盲区的位移剖面；采集全自动进行，形变轨迹可实时回放。
Full Technical Specifications完整技术参数
Segment lengths of 0.3 m, 0.5 m or 1 m to match your measurement-density requirements, with sampling up to 10 kHz for dynamic events.节段长度 0.3 米、0.5 米、1 米三种可选，匹配不同测点密度需求；采样频率最高 10kHz，可捕捉动态事件。
| Parameter参数 | Specification (RIPI 2010S)规格（RIPI 2010S） |
|---|---|
| Measurement dimensions测量维度 | 3D (X/Y/Z)三维（X/Y/Z） |
| Angular range角度量程 | 0 ~ 360° |
| Measurement accuracy测量精度 | ±0.002° (0.02 mm / 500 mm) |
| Displacement resolution位移分辨率 | 0.005 mm |
| System stability系统稳定性 | ±0.3 mm / 30 m |
| Max bending angle最大弯曲角度 | 180° |
| Segment length节段长度 | 0.3 m / 0.5 m / 1 m options0.3m / 0.5m / 1m 可选 |
| Segments per cable单线串联节数 | Up to 128 (AutoID auto-addressing)最多 128 节（AutoID 自动编址） |
| Communication interface通信接口 | RS-485 (Modbus RTU) |
| Ingress protection防护等级 | IP68, 3 MPa water pressure (tested to 4 MPa)IP68，耐水压 3MPa（实测 4MPa） |
| Operating temperature工作温度 | -40 ~ 60 ℃ |
| Sampling rate采样频率 | Up to 10 kHz最高 10kHz |
Designed for Reuse, Integration and Field Service面向复用、集成与现场维护
RIPI 2010S uses field-assembled segments, so system length can follow each project and individual sections can be inspected, replaced or redeployed. This reduces transport, installation and lifecycle constraints common to fixed-length arrays.RIPI 2010S 采用现场分段拼装，系统长度可随项目调整，单个节段也可检查、更换或重新部署，减少定长阵列在运输、安装与后期维护中的限制。
| Dimension对比维度 | Rasber RIPI 2010S | Conventional Fixed-Length SAA传统定长 SAA |
|---|---|---|
| Sensor传感器 | MEMS / high-end electrolytic-solution sensorMEMS / 高端电解质溶液传感器 | MEMS sensorMEMS 传感器 |
| On-site assembly现场拼装 | Segment-based field assembly; length adjusted on site分段现场拼装，长度可按项目调整 | Factory-defined length; adjustment depends on supplier出厂定长，调整方式取决于供应商 |
| Recovery & reuse回收复用 | Designed for segment recovery and project-to-project redeployment支持分段回收与跨项目重新部署 | Depends on installation method and product configuration取决于安装方式与产品配置 |
| Installation安装方式 | Centered installation in inclinometer casing测斜管内对中安装 | Installation method varies by project安装方式随项目条件变化 |
| Protection防护能力 | 4 MPa standard; 8 MPa available by configuration标准 4MPa，可按配置提供 8MPa | Varies by model视型号而定 |
| Data access数据接口 | Direct raw-data interface for system integration提供原始数据接口，便于系统集成 | Depends on the vendor software ecosystem取决于供应商软件体系 |
| Weight重量 | ~0.6 kg/m | Varies by configuration视配置而定 |
| Commercial model商务模式 | High-value project pricing with reusable hardware高性价比项目定价，硬件可复用 | Imported-system pricing and service model进口系统定价与服务模式 |
Lower transport, hoisting and on-site handling effort.降低运输、吊装与现场搬运负担。
World-leading accuracy with pricing designed for engineering deployment.世界领先精度，定价面向工程项目规模化落地。
Dismantle, inspect and redeploy the array after project completion.项目结束后可拆卸、检查并重新部署。
Vertical, horizontal and ring layouts from one product.竖直 / 水平 / 环形，一款产品全覆盖。
Three Deployment Modes, One Product三种布设方式 · 一款产品
Vertical for inclinometry, horizontal for settlement, ring for convergence — the flexible structure adapts wherever rigid probes cannot go.竖直测斜、水平测沉降、环形测收敛——柔性结构能去到刚性探头无法到达的地方。
Vertical · Inclinometry竖直安装 · 测斜
Deep displacement of foundation pits and slopes. Drops straight into the inclinometer casing — no guide wheels needed. The most common scenario.基坑、边坡深层位移监测。直接放入测斜管，无需导轮，是最常见的应用场景。
Horizontal · Settlement水平安装 · 沉降
Settlement of subgrades and rockfill dams — buried in a trench inside a PVC conduit, pulled in by wire rope from one end.路基、堆石坝沉降监测——沟槽 + PVC 导管埋设，由一端钢丝绳牵引拉入。
Ring · Convergence环形安装 · 收敛
Tunnel cross-section convergence — laid circumferentially along the wall or lining segments; the flexible structure naturally follows the curve.隧道断面收敛监测——沿内壁或管片环向布设，柔性结构天然适应弯曲环境。
Built around two core capabilities 两大核心特色
- ✓Segmented & recoverable分段可回收
Segmented design → flexible on-site assembly → dismantled & recovered at project end → transported to the next project → lower hardware amortization cost.分段式设计 → 现场灵活拼接 → 项目结束可拆卸回收 → 运输至下一项目 → 降低硬件摊销成本。
- ✓Torsion correction扭转校正
Built-in algorithm detects axial torsion → auto-computes azimuth → aligns to a unified coordinate system → correction accuracy better than 0.5°.内置算法检测轴向扭转 → 自动计算方位角 → 对齐统一坐标系 → 校正精度优于 0.5°。
- ✓AutoID + RS485 busAutoID + RS485 总线
One cable chains up to 128 segments with automatic addressing — simple wiring, open protocol, ready for any logger or platform.一根线串联 128 节、自动编址——布线简单、协议开放，可接入任意采集器与平台。
Installation: Vertical & Horizontal Paths安装：垂直与水平两条路径
The deployment modes above tell you where the array goes — this is how it gets there. Vertical (chained in casing) and horizontal (trench-laid) follow two entirely different procedures that are not interchangeable: confirm which one applies before work starts.上文的布设方式决定阵列“放在哪”，这里是“怎么放进去”。垂直（管内串接）与水平（沟槽铺设）是两套截然不同、互不通用的规程——进场前先确认现场属于哪一类。
Vertical — chained inside the casing垂直安装——测斜管内串接
- 1Prepare the casing测斜管准备
Seal the casing bottom and fill the casing with clean water.测斜管底端封口，管内注入清水。
- 2Connect the controller连接控制器
The lead-out cable at the top of the array connects to the controller.SAA 顶部接出线，连接控制器。
- 3Lower top-down自上而下放入
Lower the array into the casing from the top; slight bending is allowed at each flexible joint.自上而下放入测斜管，每节软管位置允许微弯。
- 4Fix and protect固定与防护
Fix the array at the top and fit a protective device on the casing mouth.顶部固定，管口加保护装置。
- 5Casing twist self-corrects管体扭转自动校正
If the casing twists during monitoring, the rotation it imparts to the array is corrected automatically by the torsion-correction algorithm.监测过程中若测斜管发生扭转，由其带动柔性测斜仪产生的扭转角度自动校正。
Horizontal — trench + PVC conduit水平安装——沟槽 + PVC 导管
Ships as a kit: PVC conduit matched to the run, end caps and mouth fittings, traction wire rope and marker posts.安装套装包含：与长度匹配的 PVC 导管、端盖与管口配件、牵引钢丝绳、标志杆。
- 1Excavate the trench开沟
Trench bottom flat and level, length matched — avoid local dips.沟底平整、长度匹配，避免局部下凹。
- 2Lay the conduit铺管
Every PVC conduit seam must be sealed with PVC primer + cement — otherwise water gets in later.PVC 导管接缝必须使用胶水 + 底漆密封，否则后期进水。
- 3Pull in — never push牵引——严禁推动
Pull the array into the conduit with the wire rope from one end. Pushing destabilizes the flexible joints and damages the hinges.用钢丝绳从一端牵引拉入导管。推动会导致软管失稳、损伤铰链。
- 4Check every bend radius核查弯曲半径
At any curve the bend radius must stay ≥ Rmin (about 0.3 m); any section below the limit is re-laid.任何弯曲处半径必须 ≥ Rmin（约 0.3m），不达标的整段重做。
- 5Finish & seal收尾密封
Waterproof the lead-out end and seal the end caps.出线端做防水处理，端盖密封。
After Burial: Remote Inspection for Horizontal Layouts埋设之后：水平布设的远程巡检
A horizontal run leaves nothing visible at the surface — periodic inspection happens remotely on the cloud platform.水平安装后地面无线索可见，定期巡检依靠云平台远程完成。
Review the overall displacement-curve shape remotely every week.每周远程查看曲线整体形状。
Compare readings against same-period per-segment temperature records.每月对比同期每节温度记录。
Verify benchmark stability to separate true displacement from foundation movement.每季度核对基准点稳定性，区分真位移与基础位移。
Send for a metrology-institute spot calibration every year.每年送计量院抽测。

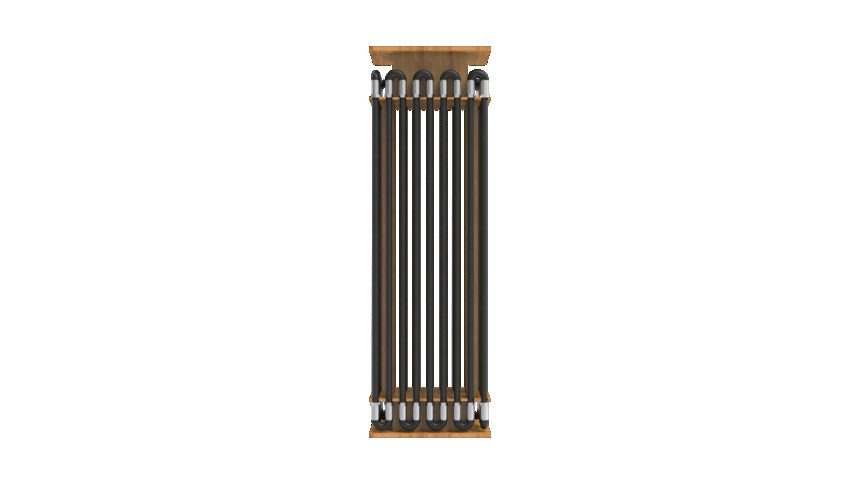

Assembly & Structure in Detail组装与结构细节

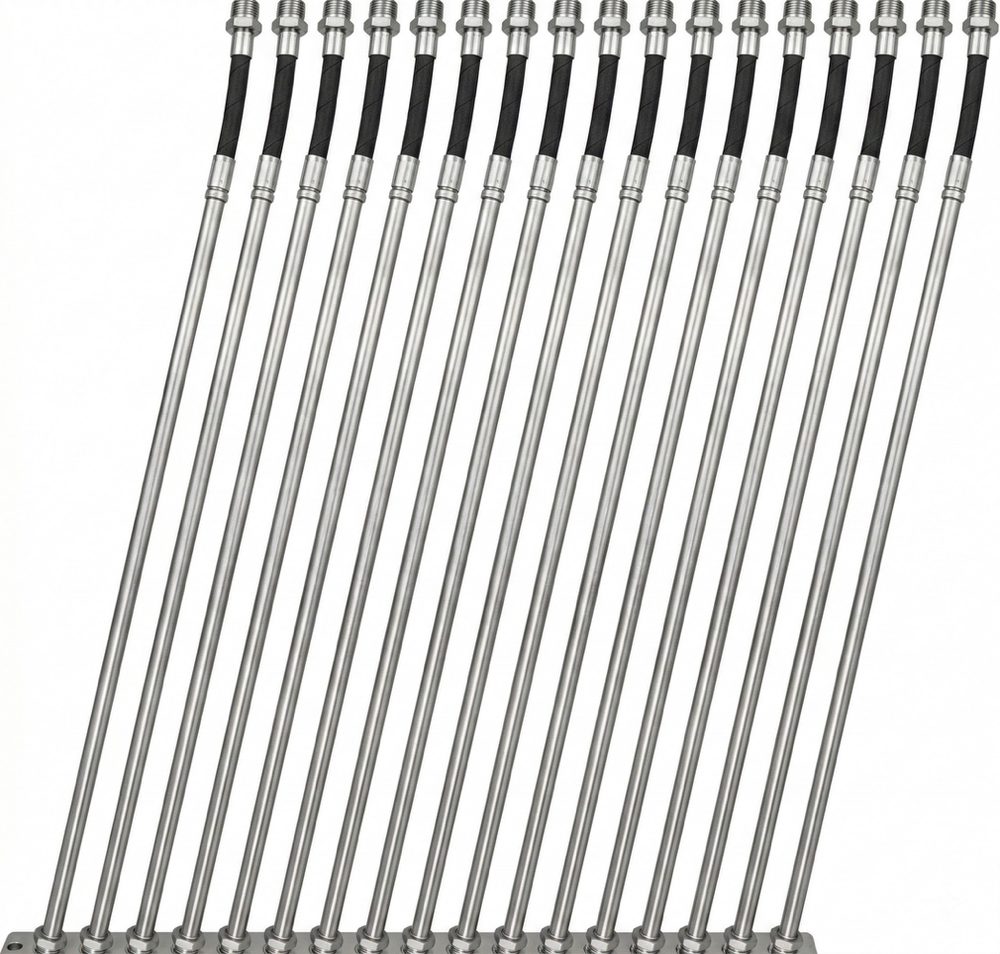

Every Segment Is a Reusable Asset每一节传感器都是可复用资产
Recovered segments can be inspected and configured for a new project, allowing the same hardware investment to serve multiple deployments and reducing lifecycle cost with each reuse.回收后的节段经检查后可按新项目重新配置，同一批硬件能够服务多个项目，复用次数增加后，全周期成本随之下降。
Modular assembly — installed by 2 people in 30 minutes.模块化拼接，2 人 30 分钟完成安装。
Automated acquisition, zero manual effort.自动化采集，零人工介入。
Dismantled and recovered segment by segment.分段拆卸回收。
Hardware cost falls with each reuse.硬件成本随复用次数递减。

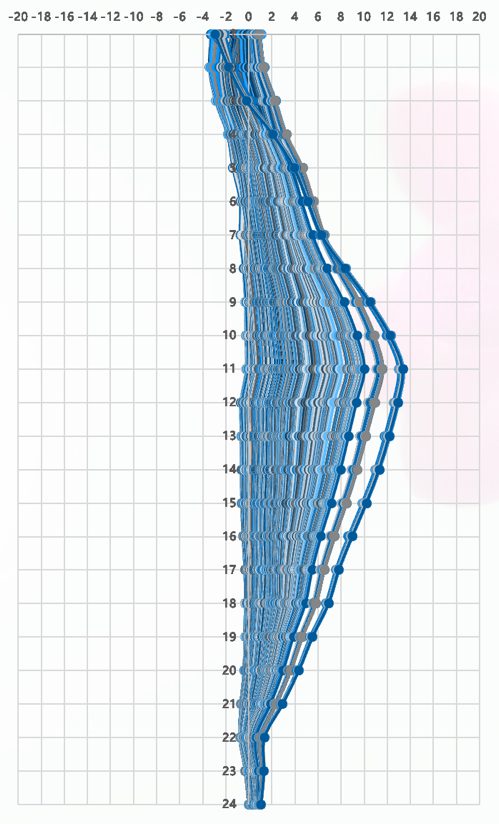

Real monitoring output: cumulative deep-displacement profiles — depth on the vertical axis, displacement on the horizontal; successive automated readings trace the deformation history.真实监测输出：深部位移累计曲线——纵轴为深度，横轴为位移，自动化逐次采集记录变形过程。
Shaoxing Metro Line 2: validated against the sliding inclinometer 绍兴地铁 2 号线：与滑动式测斜仪同孔验证
At Paojiang Lianghu Station, a flexible and a sliding inclinometer were installed just 20 cm apart in the same borehole. Over six months, A-axis displacement trends matched closely — proving automated SAA monitoring can fully replace manual sliding surveys with equally reliable data. 在袍江两湖站，柔性测斜仪与滑动式测斜仪相距仅 20cm 同孔安装。半年监测显示 A 向位移趋势高度吻合——验证了自动化柔性测斜可完全替代人工滑动式测量，数据质量同样可靠。
- ✓Method验证方法
Two sensor types buried 20 cm apart in the same borehole.两种传感器相距 20cm 同孔埋设。
- ✓Duration监测周期
6+ months of continuous monitoring.连续监测 6 个月以上。
- ✓Result结论
A-axis trends matched closely; the two datasets mutually verified.A 向位移趋势高度吻合，数据可互验。
SAA or In-Place Inclinometer — Which to Choose?柔性还是固定式——如何选型？
A simple rule: complex large deformation, settlement or convergence — choose the flexible SAA. Vertical deep boreholes where small displacements matter — choose the in-place inclinometer. Combining the two delivers the best results.简单的选型原则：复杂大变形、沉降或收敛监测，选柔性；垂直深孔、关注微小位移，选固定式。两者搭配使用效果最佳。
| Feature特性 | Flexible Inclinometer (SAA)柔性测斜仪（SAA） | In-Place Inclinometer (IPI)固定式测斜仪（IPI） |
|---|---|---|
| Structure结构 | Flexible joints, bendable柔性关节可弯曲 | Rigid rod, must stay straight硬杆需保持直线 |
| Measurement density测量密度 | Continuous, no blind spots连续无盲区 | Discrete (1–3 m spacing)离散（间隔 1–3m） |
| Range量程 | 0–360°, hard to exceed range0~360°，不易超量程 | ±15° / ±30° |
| Deployment布设方式 | Vertical / horizontal / ring竖直 / 水平 / 环形 | Mainly vertical主要竖直 |
| Weight重量 | ~0.6 kg/m | Carbon fiber 0.12 kg/m (lighter)碳纤维 0.12kg/m（更轻便） |
| Best for适用场景 | Complex large deformation / settlement / convergence复杂大变形 / 沉降 / 收敛 | Small displacements in vertical deep boreholes垂直深孔微小位移 |
Monitoring a vertical deep borehole with small displacements? 监测垂直深孔的微小位移？ Explore the In-Place Inclinometer →了解固定式测斜仪 →
Four Benchmark Case Studies四个标杆工程案例
From same-borehole validation to a tidal pattern no human survey could ever catch — each case proves a different capability.从同孔验证到人工监测不可能发现的潮汐规律——每个案例验证一项核心能力。
Shaoxing Metro Line 2 · Paojiang Lianghu Station绍兴地铁 2 号线 · 袍江两湖站
Flexible and sliding inclinometers installed 20 cm apart in the same borehole. Six months of monitoring: A-axis trends matched closely — automation reliably replaces manual surveys.柔性与滑动式相距 20cm 同孔安装，半年监测 A 向位移趋势高度吻合——验证自动化替代人工监测的可靠性。
Suzhou Metro Line 5 · Jinchu Street Station苏州地铁 5 号线 · 金储街站
Automated monitoring triggered a displacement-rate alert, catching sudden displacement from delayed strut installation — proof of high-frequency response to sudden conditions.自动化监测成功触发位移速率预警，捕捉支撑架设滞后导致的突发位移——验证高频采集对突发工况的响应。
Suzhou Xiangcheng Foundation Pit苏州相城基坑
High-frequency sampling revealed twice-daily periodic fluctuation of the retaining structure — a tidal deformation pattern undetectable by manual surveys, linking groundwater level to structural deformation.高频采集发现围护结构每日两次的周期性波动——人工监测不可能发现的潮汐形变，揭示地下水位与结构变形的关联规律。
Baihetan Hydropower Station · Ultra-Deep Borehole白鹤滩水电站 · 超深孔
High-precision monitoring in a 300 m-class ultra-deep borehole, operating stably long-term in harsh conditions — product reliability proven under extreme conditions.300 米级超深孔高精度监测，严苛环境下长期稳定运行——验证极端条件下的产品可靠性。
More deployments: Hangzhou Metro Line 3 · Qingdao Jiaozhou Bay Tunnel (65 units) · Shanghai Metro Line 18 · Nanning CNPC pipeline geohazard monitoring 更多案例：杭州地铁 3 号线 · 青岛胶州湾隧道（65 套）· 上海地铁 18 号线 · 南宁中石油管道地灾监测
Frequently Asked Questions常见问题解答
Horizontal settlement profiles or tunnel convergence rings — flexible array or in-place inclinometer?水平沉降剖面或隧道收敛环测，选柔性还是固定式？
Does vertical installation need inclinometer casing with guide grooves?垂直安装需要带导槽的测斜管吗？
What is the minimum bend radius?最小弯曲半径是多少？
Can I push the array into the conduit on a horizontal run?水平安装时可以把阵列推进导管吗？
How does recovery and reuse work between projects?项目之间如何回收复用？
How is axial torsion handled?轴向扭转如何处理？
How do I inspect and maintain a horizontal layout once it is buried?水平埋设后如何巡检维护？
The whole curve jumped — or has drifted slowly for months. What does each signature mean?整根曲线突跳，或长期缓慢漂移——分别说明什么？
From Order to Long-Term O&M从下单到长期运维
Every unit ships with factory QC reports, and accuracy is traceable through third-party metrology institute calibration.每台设备随附出厂质检报告，精度可通过第三方计量机构校准溯源。
Standard products ship from stock; fast response on customization.标准产品现货发出，定制需求快速响应。
On-site installation guidance and partner enablement training.现场安装指导与合作伙伴赋能培训。
Backed by full-lifecycle technical service across four phases.四阶段全生命周期技术服务保障。
Cloud-hosted O&M, remote device-status monitoring and periodic reports.云端托管运维、设备状态远程监控与定期报告。
Often Deployed Together常见配套组合

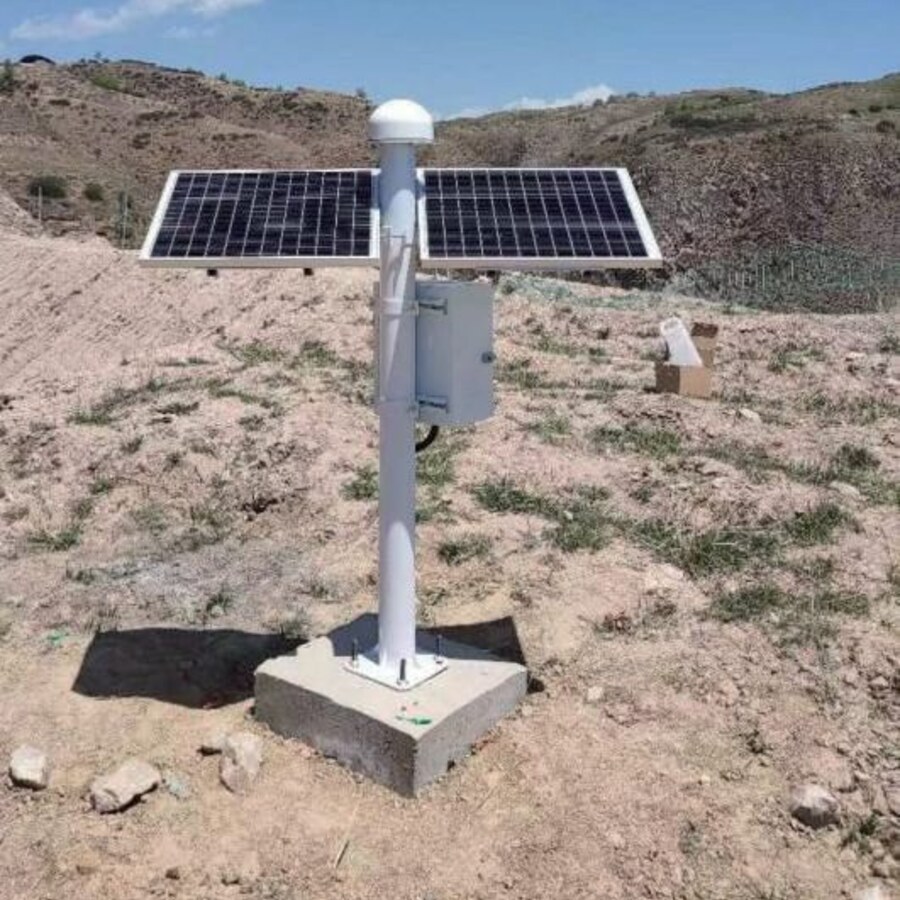

GNSS MonitoringGNSS 监测
